Features:

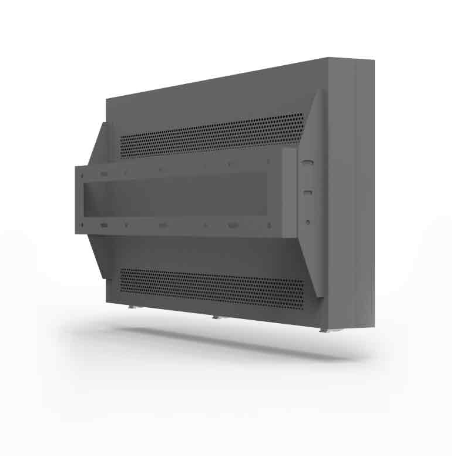

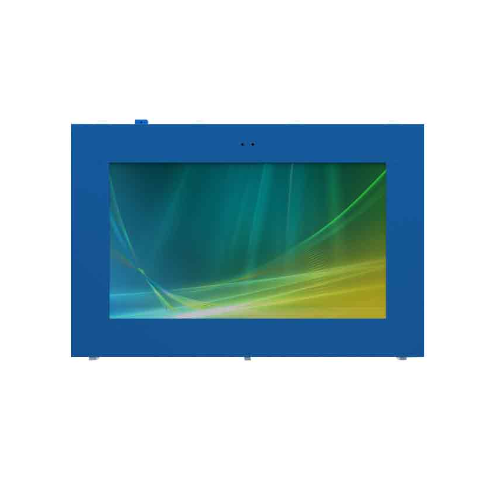

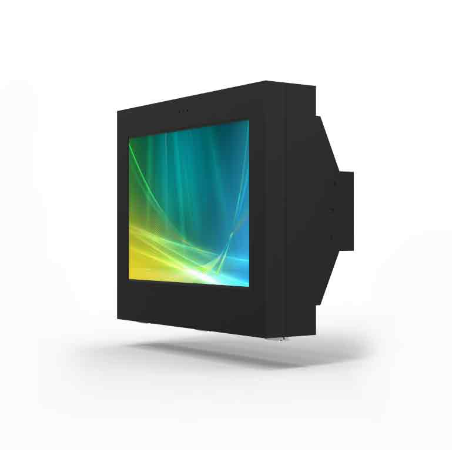

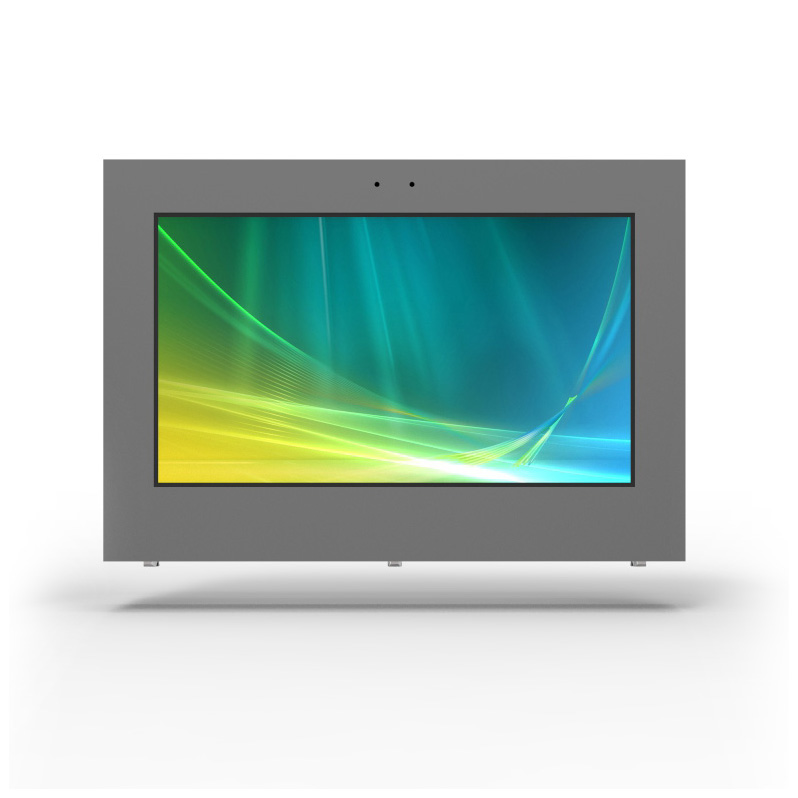

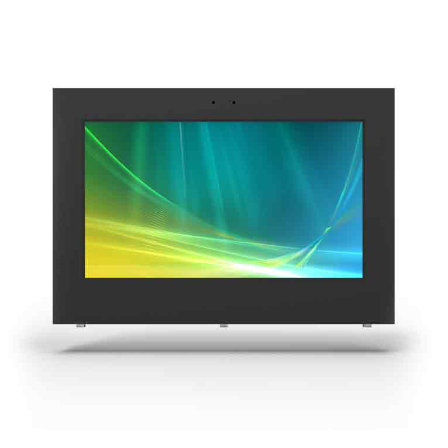

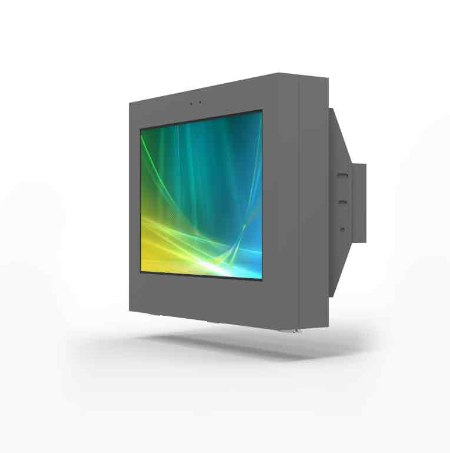

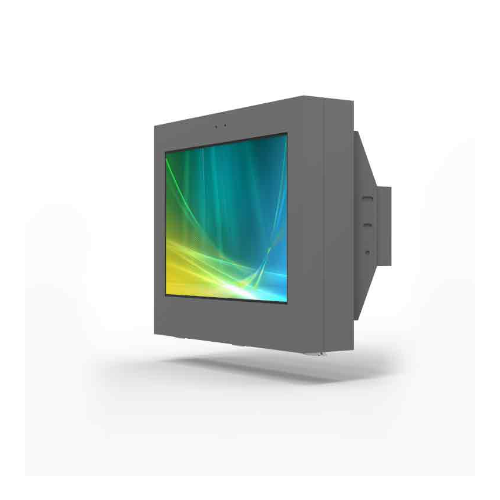

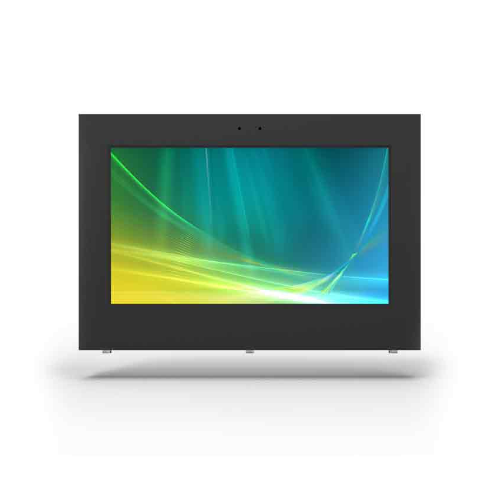

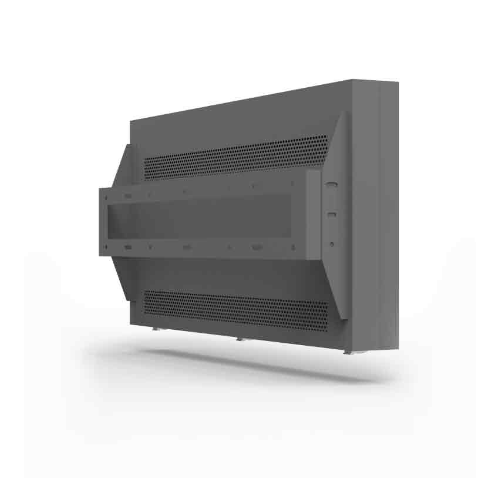

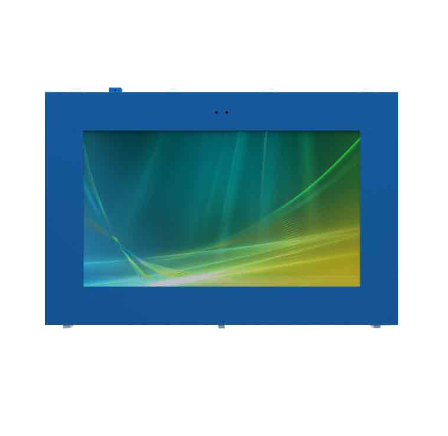

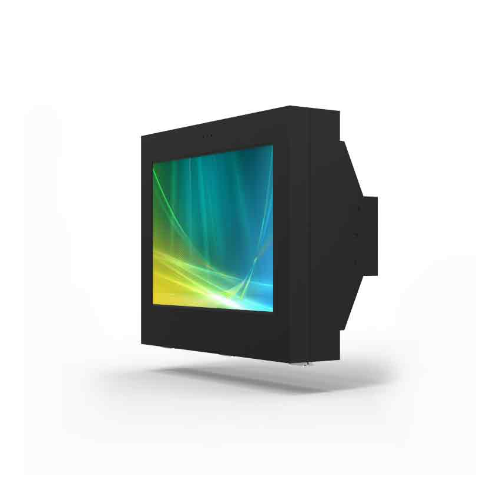

49-inch horizontal screen wall-mounted outdoor advertising machine
Frame material: SGCC galvanized steel plate, aluminum plate, 304# stainless steel
Protective glass: 6mmAR anti-glare glass
Heat dissipation structure: air-cooled heat dissipation, air-conditioning heat dissipation
Surface treatment: high temperature electrostatic spraying, fluorocarbon baking paint
Function, size and color can be customized according to customer needs
| SCREEN PANEL | ||||||||
| Panel size | 21.5 | 32 | 43 | 49 | 55 | 65 | 75 | 86 |
| Panel brand | LG / AUO / BOE | |||||||
Display area (mm) | 476*268 | 697*392 | 941*530 | 1074*604 | 1209*680 | 1428*803 | 1650*928 | 1895*1065 |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 | 3840*2160 | 3840*2160 |
| Brightness | 1000-3000nits | |||||||
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Contrast | 3500:1 | |||||||
| Response time | 6ms | |||||||
| Visual angle | 178°（H）/178°（V） | |||||||
| Backlight | LED | |||||||
| Woriking life | 50000H | |||||||
| Controlling System | ||||||||
| Intelligent regulation | YES | Intelligent temperature control | YES | |||||
| Voltage | Input | AC220/110V±10% ，50/60HZ | ||||||
| 135 | 150 | 280 | 360 | 400 | 600 | 1200 | 1800 | |
| Outer casing | IP Degree | IP65 | Case life | 10 years | ||||
| Case Materials | SGCC galvanized steel plate, aluminum plate, 304# stainless steel + outdoor plastic powder | |||||||
| Glass type | 5~8mm tempered glass, AR anti-glare glass | |||||||
| Product size (w*h*d mm) | 640*470*135 | 910*600*200 | 1150*740*200 | 1280*810*200 | 1420*890*200 | 1640*1010*220 | 1860*1140*220 | 2110*1280*240 |
| Weight（kg） | 30 | 70 | 85 | 115 | 125 | 150 | 220 | 280 |
| Working Environment | ||||||||
Working Environment | Outdoor | Working Temp. | -30℃~+60℃ | Working Humidity | 5%~98% | |||
| Media | ||||||||
| Spec. | Memory/Rom | Harddisk/Ram | System | Information release | ||||
| Windows OS | 4/8/16/32G | 64/128/256/512G | win7/win10 32/64bit | included | ||||
| Android OS | 1/2/4G | 8/16/32/64/128G | Android4.4-8.0 | included | ||||
| Optional | Single vision/ 4G / Wifi/Touch | |||||||
INTELLIGENT INSPECTION AND MONITORING SYSTEM (CONTROLLABLE STANDARD):
(1) Temperature monitoring: monitor the rotation speed and operating status of each fan inside the whole machine, and can set and
adjust each group in front of the screen/behind the screen in different regions The initial start-up temperature value and the maximum
rotation temperature value of the fan realize intelligent temperature control. Range value: ≤-35～≥96℃.
(2) Man-made damage monitoring: If the device is knocked or collided by someone, the monitoring system will automatically report to
the server. Range value: ≥8kg±5%, 0.1kg~20kg adjustable.
(3) Anti-theft monitoring: Someone pries open the door of the equipment, and the monitoring system automatically reports to the
server. Range value: ≤20mm±5% adjustable.
(4) Smoke monitoring: When an accident occurs inside the device and smoke is generated, the monitoring system will automatically
report to the server. Range value: ≥450~1000PM adjustable.
(5) Water immersion monitoring: When the equipment is installed in heavy rain and the water level reaches a dangerous level, the
monitoring system will automatically report to the server and cut off the power supply at the same time Prevent flooding in heavy rains
and personal injury caused by electric leakage. Range value: ≤0.1m adjustable.
(6) The perfect integration of the information release system and the intelligent inspection and monitoring system and real-time
monitoring: it can provide a docking protocol for the inspection and monitoring system to realize user Outer bright LCD digital signage
running status automatic alarm
Product Parameters :
1. Structure:
(1) The shel is made of 1.5mm SGCC galvanized steel plate, sprayed with Aksu outdoor special plastic powder, and the protection period is more than 10years.
(2) The shel structure is designed with waterproof groove and air inlet and outlet, meeting the lP55 protection level.
(3) Dust-proof design: The air inlet and outlet are designed with a special medium and high-eficiency dust-proof filter to filter the
dustin the air andprevent mosquitoes from entering the machine. The minimalist disassembly design is convenient for ustomers to
maintain regularly.
（4) The protective glass in front of the screen of the whole machine is made of 6mm ultra-white tempered glass, with a lioht
transmittance of 97%, hiohlight transmittance. and anti-reflection.
（5) The whole machine adoots the front and rear door opening mode.which can facltate the maintenance of the internal displav sren.
heat disinatiorcomponents and electronic parts.
(6) The whole machine adopts modular design, which is convenient for installation and maintenance.(7) The installation hole is
designed on the floor of the whole machine, which can be fixed by pulling bolts or pre-embedded threaded rods
2. Display:
(1) High-brightness LCD screen is adopted, and the brightness can reach 1500-2500cd/m?
(2) High-resolution, high-contrast, high-brightness, greatly improve the layering of the picture, and can better express the details.
(3) It has the function of automatically eliminating afterimages, anti-ultraviolet, heat insulation aainst sunlight, automatic light-sensing green energysaving protection for long-term use of the LCD screen.
(4) lt has the function of black level extension and self-adaptation, which can enhance the depth of field of the image.
(5) The outdoor protessional hich-brghtness LCD screen is adopted, the ideo image is brighter and the three-dimensional effect is
stronger
(6) 16.7M colors, the picture is more natural, and the delicate picture is truly free of tailing.
(7) Over-life, 7*24 hours of uninterrupted work, up to 50,000 hours.
3. Electrical:
(1) Electrical protection: leakage, overload, overvoltage protection, lightning protection device, over-temperature protection, etc.
(2) Audio: Dual-channel, stereo surround power amplifier system with an output power of 8 ohms and 10W.
(3) The working environment temperature design standard is +50°~-20°.
(4) Adopt the principle of modular design, sustainable and maintainable design.
(5) Automatic photosensitive adjustment: The screen backiht adopts automatic ambient ioht sensing, real-time adiustment of the screen brightness canmeet the ciear image display under strong direct sun int environment, so that the screen is not dazz in at nicht eneroy
savna and envronmentaprotection.
4.Heat dissipation:
(1) Adopt integrated intelligent direct ventilation and heat dissipation system, professional and special air duct heat dissipation desiqn.
(2) The interal air and extemal air of the whole machine are circulated and exchanged. After the exteral air enters the dust-proof net and
is filtered, it isdivided into two sub-circulations in front of the screen and behind the screen to ensure that the intemal temperature is 8-10 dearees hiaher than theexternal temperature.
(3) Self-developed fan speed control board, which can automatically adiust the fan speed according to the internal temperature of the
machine
(4) Equipped with high-temperature automatic power-of protection function. When the internal temperature of the machine is
abnormally high andexceeds the norma working ranae the contro sstem wil perfom powe-of orotecton for the main components surh as the dinlav sreen and at thesame time, the fan continues to run at full speed to dissipate heat, fully protecting the display screen and main components parts.
