Features
1. Cordless motherboard design, high-end industrial panel PC;

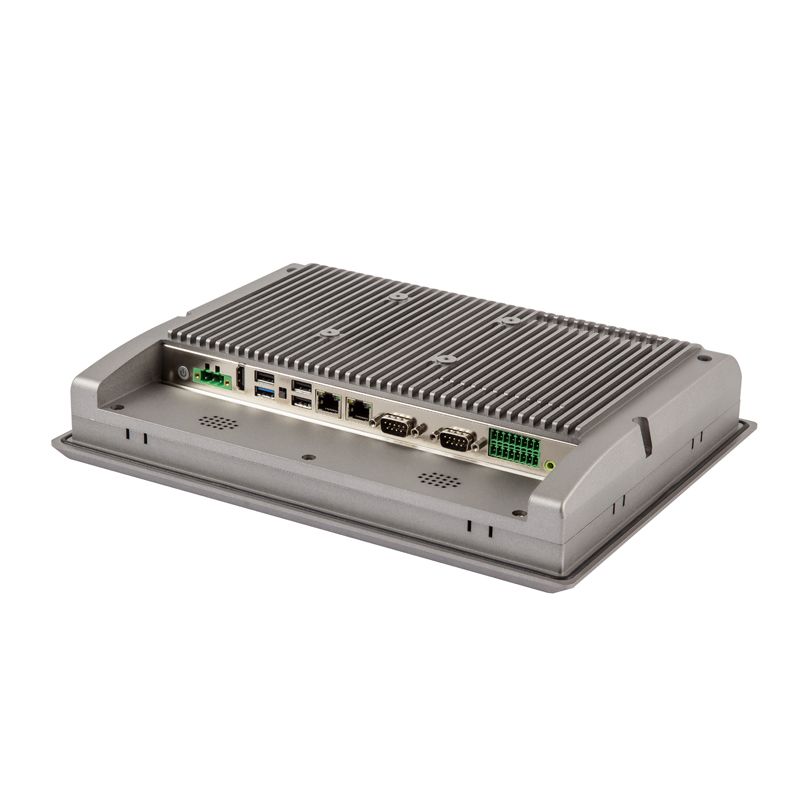

2. Fully enclosed design, the whole PC is dustproof;

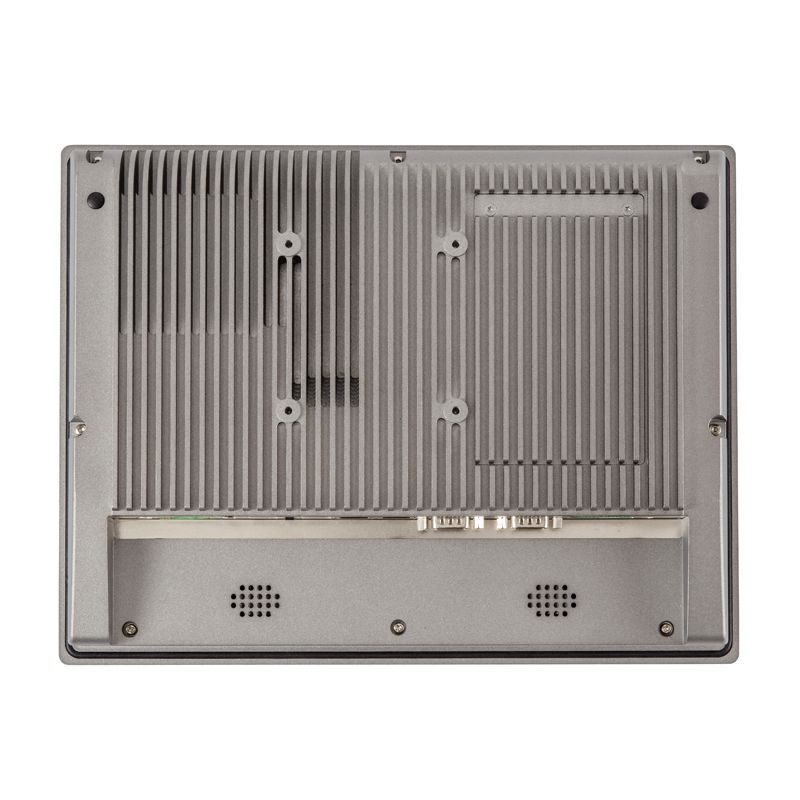

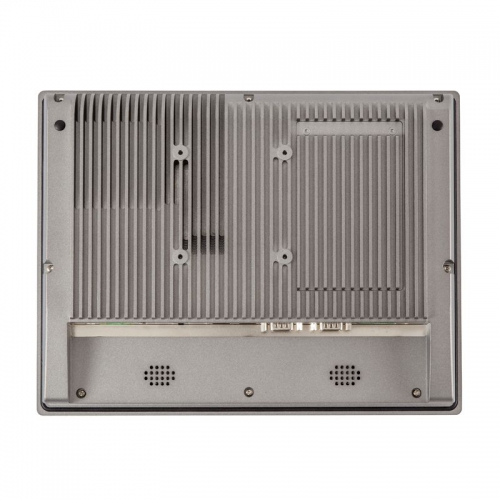

3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation;
4. With Rubber waterproof ring on the back side;

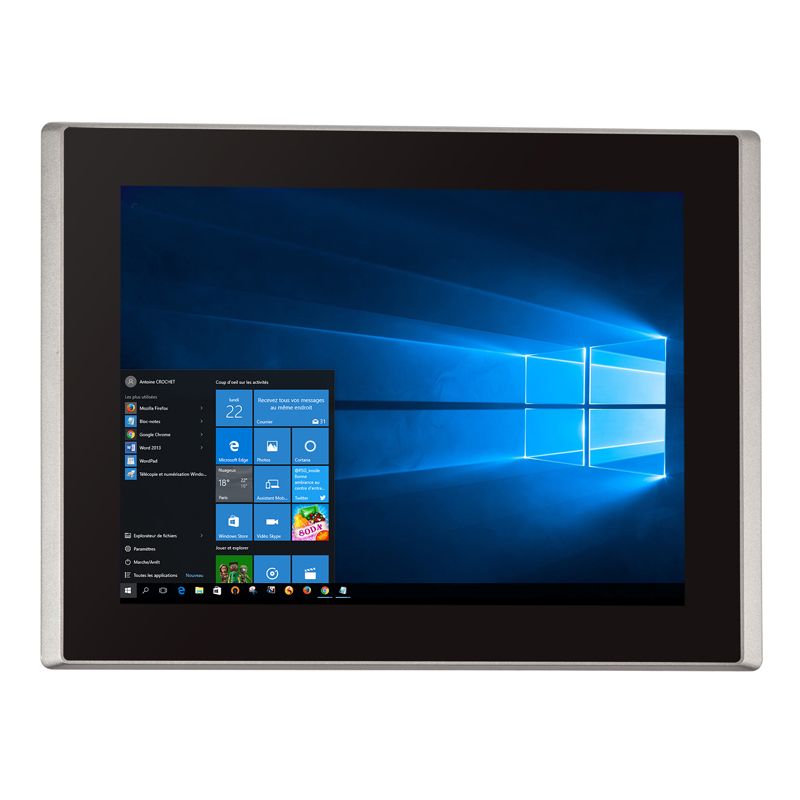

5. Industrial LCD panel, wide viewing angle, high nits, true color;
6. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof;
7. 9V-36V wide voltage, 3 Pin Phoenix terminal, Shock - proof;

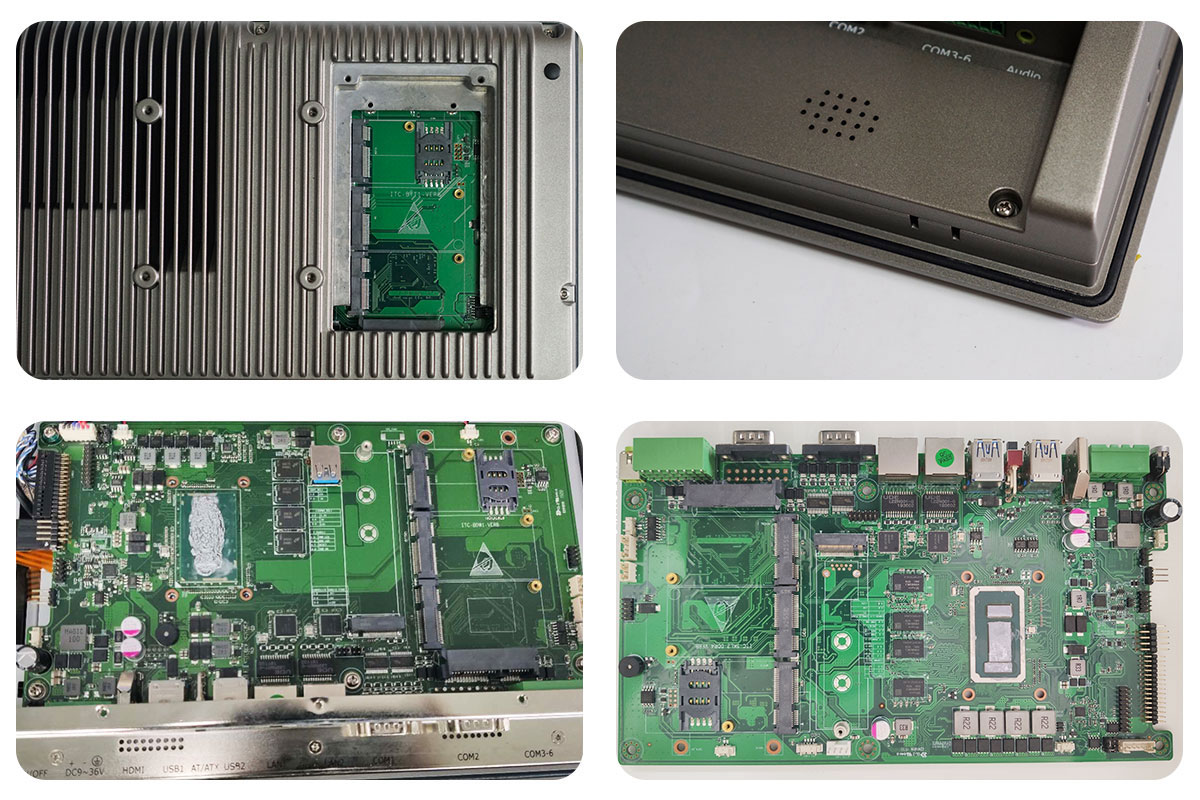

8. High performance motherboard, 7x24 continuous operation.
Technical Highlights
Specification
| Model:SC500M | |
| PC | |
| CPU | Intel® Celeron J1900, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.4 GHz, 2MB Cache, Fanless |
| CPU optional | Intel® Core, I5-4278U, 2 Cores, 4 Threads, Base 2.6 GHz, Turbo 3.1 GHz, 3MB Cache, Fanless |
| CPU optional | Intel® Core, I7-4500U, 2 Cores, 4 Threads, Base 1.8 GHz, Turbo 3.0 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I5-6260U, 2 Cores, 4 Threads, Base 1.8 GHz, Turbo 2.9 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I5-6360U, 2 Cores, 4 Threads, Base 2.6 GHz, Turbo 3.1 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I5-7267U, 2 Cores, 4 Threads, Base 3.1 GHz, Turbo 3.5 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I5-7360U, 2 Cores, 4 Threads, Base 2.3 GHz, Turbo 3.6 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I7-7560U, 2 Cores, 4 Threads, Base 2.4 GHz, Turbo 3.8 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I5-8250U, 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 3.4 GHz, 6MB Cache, Fanless |
| CPU optional | Intel® Core, I7-8550U, 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.0 GHz, 8MB Cache, Fanless |
| Memory | J1900: Onboard DDR3 4G RAM Core 4gen of i5/i7: DDR3 SODIMM x1(Max 8G RAM) Core 6/7/8gen of i5/i7: DDR4 SODIMM x1(Max 16G RAM) |
| Storage | 1x MSATA 1 x SATA(2.5' SATA) 1xM.2 (Core only) |
| Hard Drive Capacity Optional | SSD: 64G, 128GB, 256GB, 512G, 1TB, 2TB |
| HDD: 500GB, 1TB, 2TB, 4TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 2x GbE RJ45 Intel i211-AT (4x GbE RJ45 Intel i211-AT Optional) |
| Wireless Network | WIFI&Bluetooth And 4G LTE Module Optional |

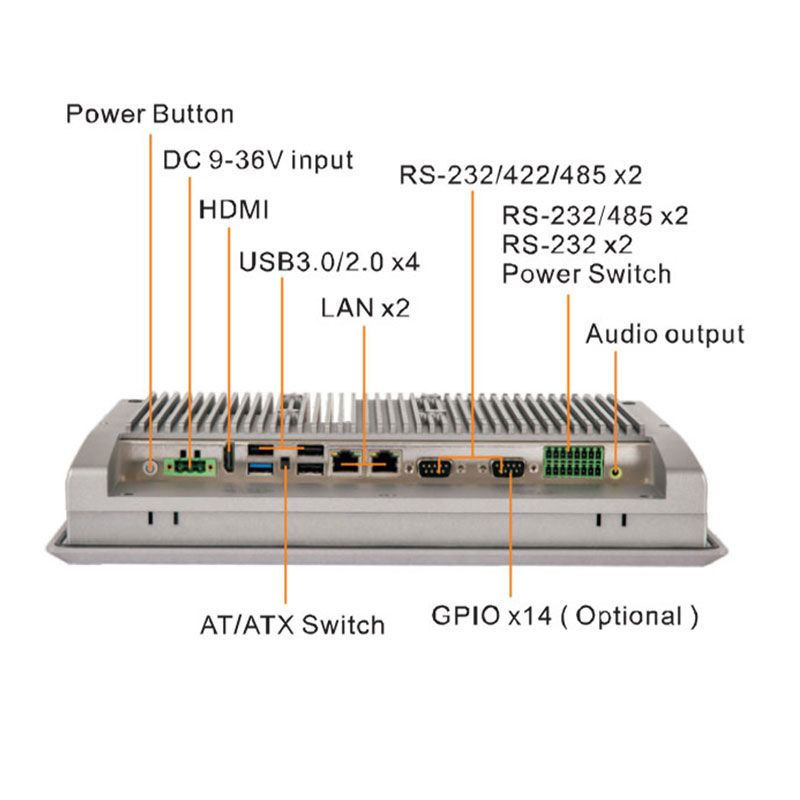

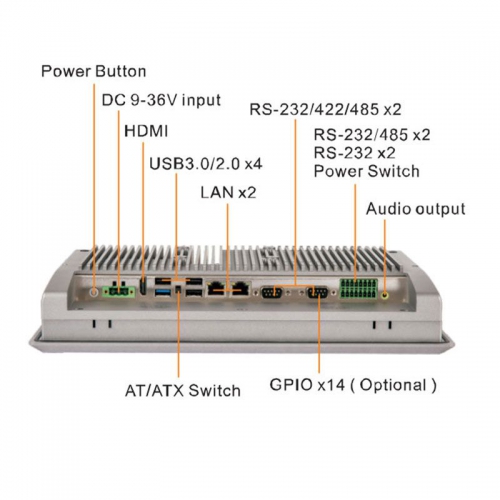

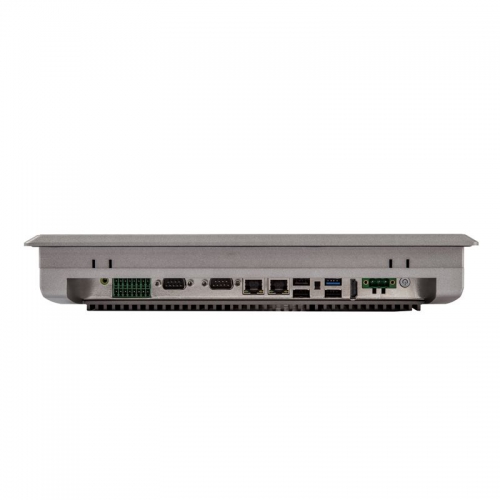

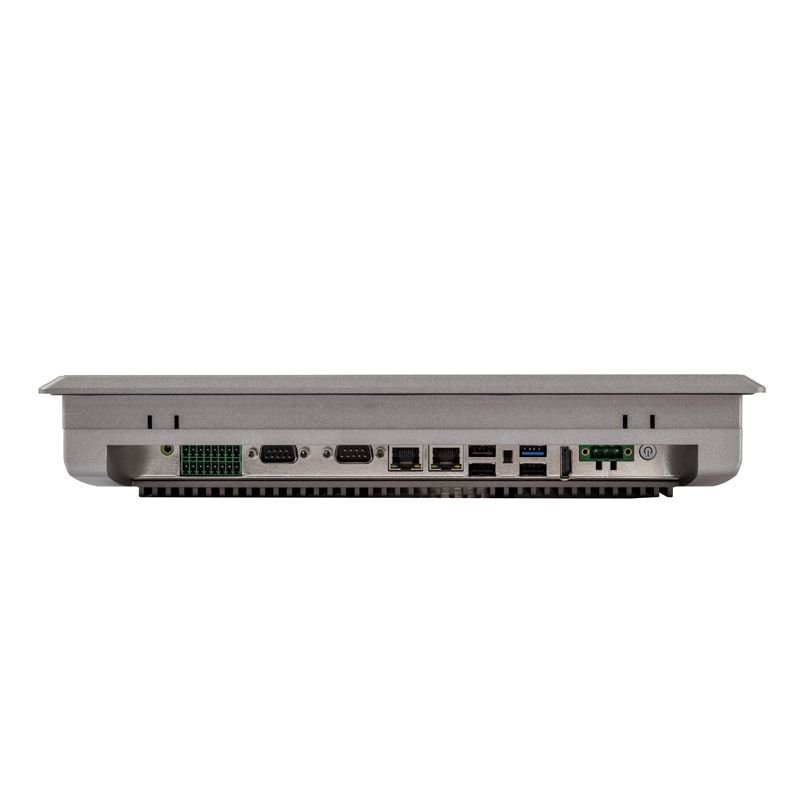

| I/O Interface | J1900: 3xUSB 2.0, 1xUSB 3.0(Core CPU: 4xUSB3.0), 1x built in USB SoftDog, |
| 2x DB-9 COM1& COM2, RS232/422/485 | |
| 2x3 wire COM3 & COM4 RS232/485 Phoenix terminal, 2x3 wire COM5 & COM6 RS232 | |
| 1xPhoenix terminal remote switch interface | |
| 1x AT/ATX switch | |
| 1x HDMI/Audio Line-out/ Power Button, 2xLAN(4xLAN Optional) | |
| 1x 14 bit GPIO optional | |
| 2x 8Ω 1W Amplifier out optional | |
| Expansion slot | MINI-PCIE x 1, on board SIM card slot, support 3G/4G module |
| MINI-PCIE x 1, support WIFI/ Bluetooth | |
| Watchdog timer | 1~255 second Programmable Setting |
| Operation System | Support Windows 7/8/10, WES 7, Linux |
| LCD panel | |

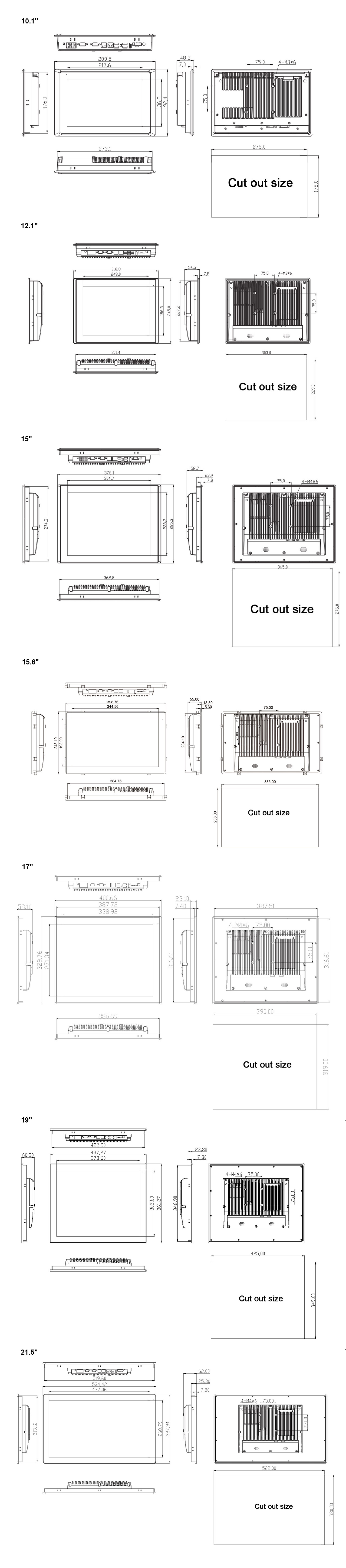

| Panel size | 8" 10.1" 10.4" 13.3" 16" 15.6" 17" 19" 21.5" |
| Resolution | 1024*768 1280*800 1280*1024 1920*1080 |
| Aspect ratio | 4:3 16:10 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 500 (cd/m²) |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) or 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | 9V-36V wide voltage with 3 Pin Phoenix terminal |
| Power consumption | ≤30W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Grey |

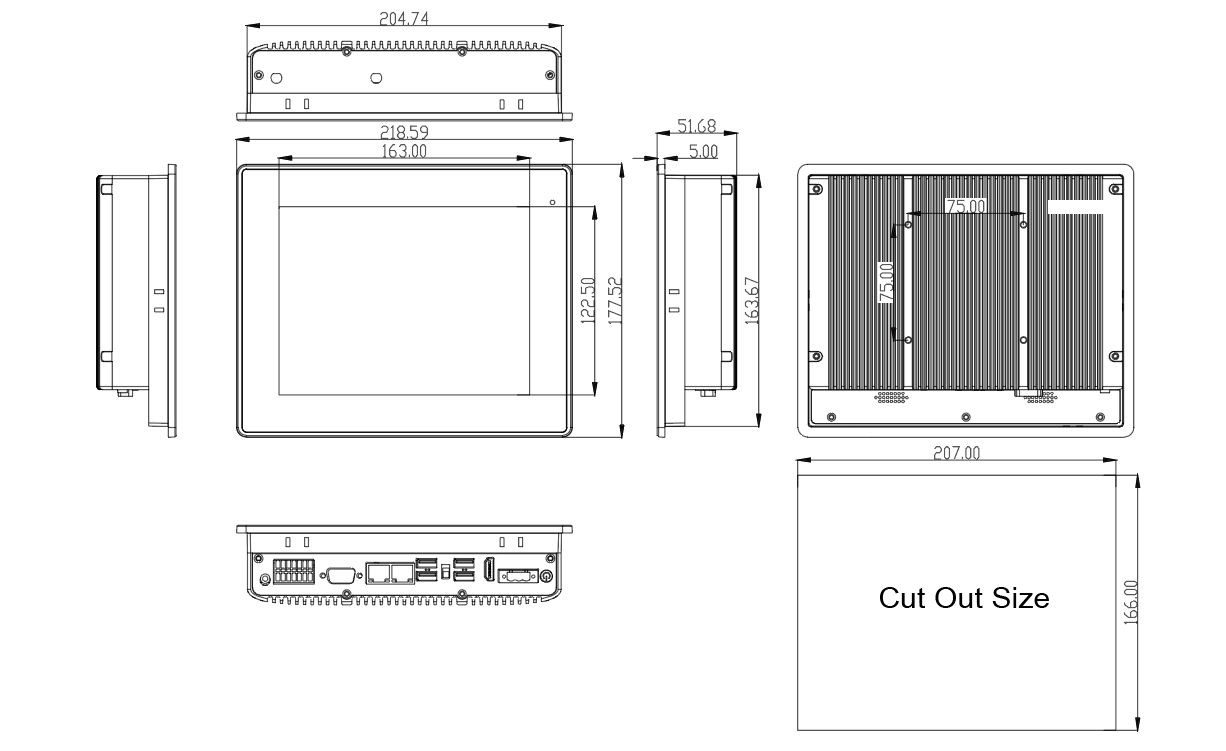

| VESA mounting | 75x75mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | 10%~90% @ 30° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Accessories | Power adapter, power cord, embedded screws, 2.5-inch hard drive holder |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 2 year warranty |
| Certificate | CE, FCC, RoHS |
8"
