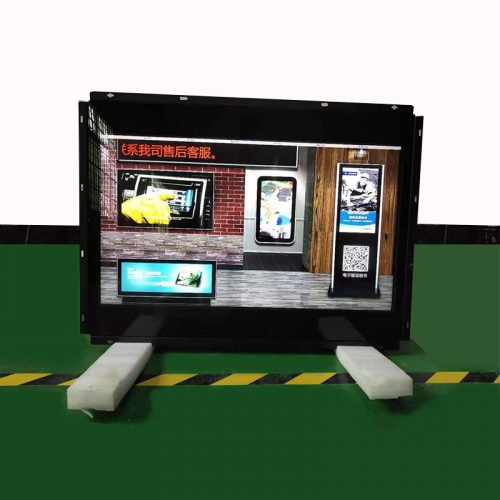

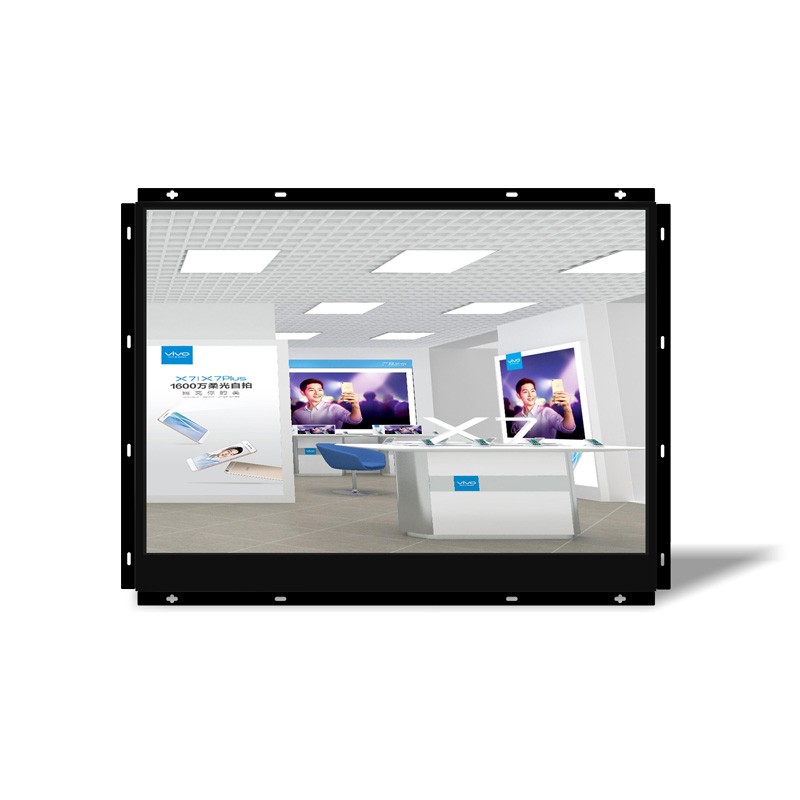

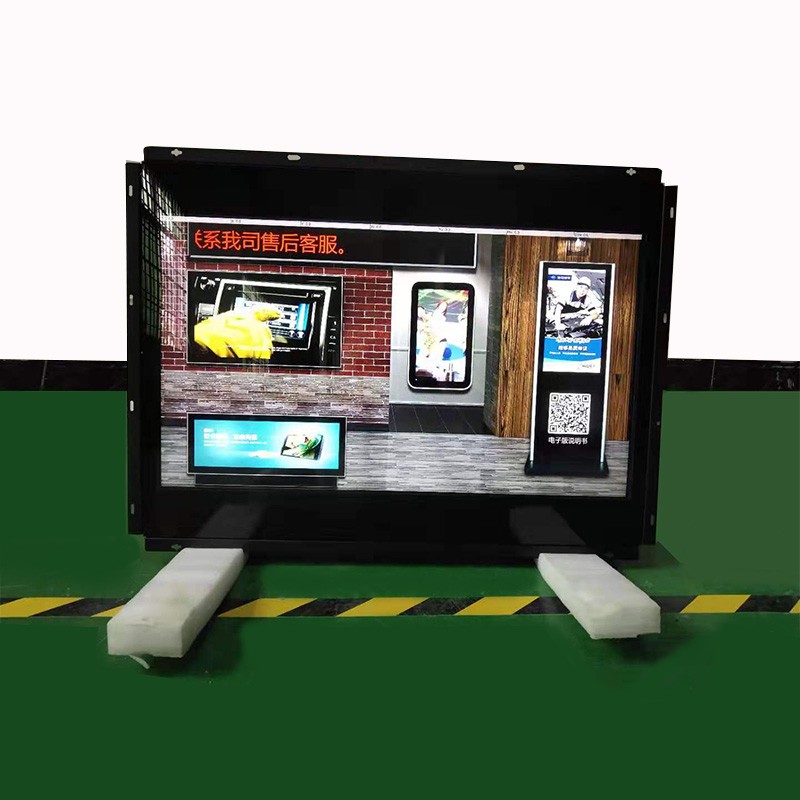

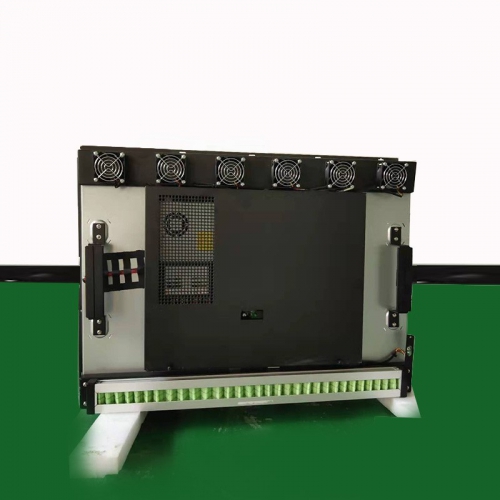

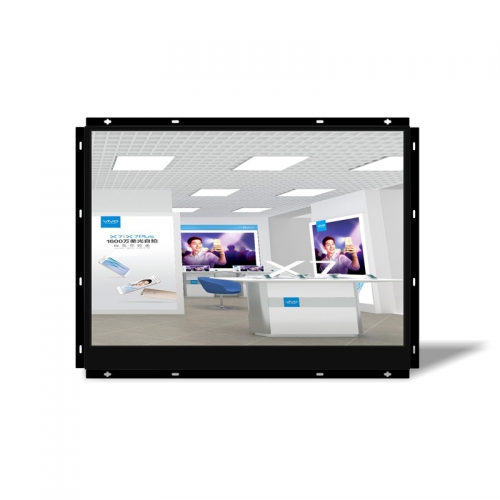

32 inch open semi-outdoor advertising machine

32 inch open semi-outdoor advertising machine

Features :

1. Frame material: SGCC galvanized steel plate, aluminum plate, 304# stainless steel

2. Protective glass: 6mm AR anti-glare glass

3. Heat dissipation structure: air-cooled heat dissipation, air-conditioning heat dissipation

4. Surface treatment: high temperature electrostatic spraying, fluorocarbon baking paint

Function, size and color can be customized according to customer needs

Product Parameters :

1. Structure:

 (1) The shel is made of 1.5mm SGCC galvanized steel plate, sprayed with Aksu outdoor special plastic powder, and the protection period is more than 10years.

   (2) The shel structure is designed with waterproof groove and air inlet and outlet, meeting the lP55 protection level.

   (3) Dust-proof design: The air inlet and outlet are designed with a special medium and high-eficiency dust-proof filter to filter the

dustin the air andprevent mosquitoes from entering the machine. The minimalist disassembly design is convenient for ustomers to

maintain regularly.

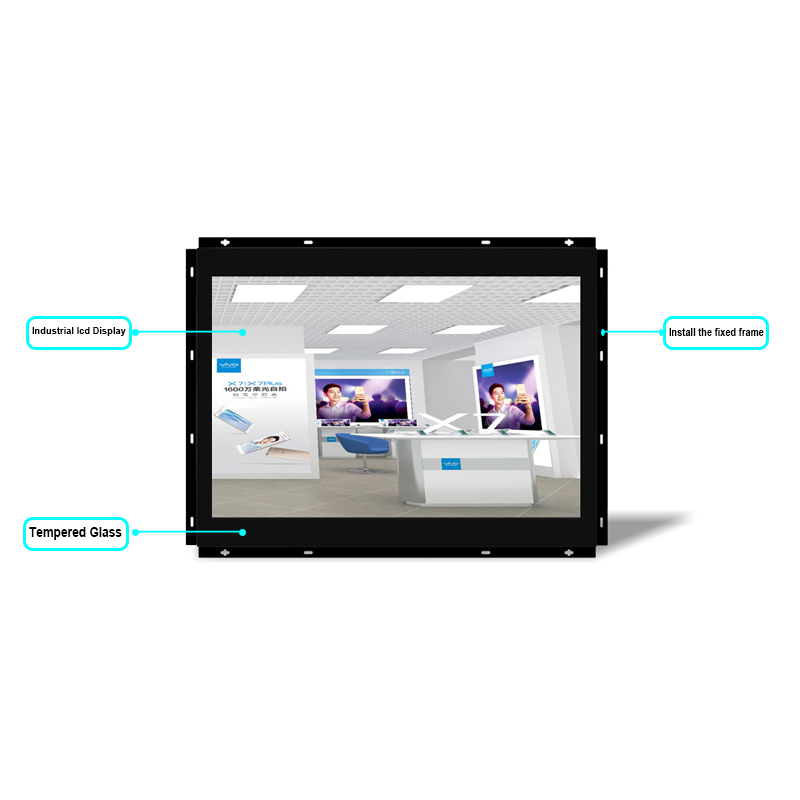

（4) The protective glass in front of the screen of the whole machine is made of 6mm ultra-white tempered glass, with a lioht

transmittance of 97%, hiohlight transmittance. and anti-reflection.

（5) The whole machine adoots the front and rear door opening mode.which can facltate the maintenance of the internal displav sren.

heat disinatiorcomponents and electronic parts.

      (6) The whole machine adopts modular design, which is convenient for installation and maintenance.(7) The installation hole is

designed on the floor of the whole machine, which can be fixed by pulling bolts or pre-embedded threaded rods

2. Display:

   (1) High-brightness LCD screen is adopted, and the brightness can reach 1500-2500cd/m?

   (2) High-resolution, high-contrast, high-brightness, greatly improve the layering of the picture, and can better express the details.

   (3) It has the function of automatically eliminating afterimages, anti-ultraviolet, heat insulation aainst sunlight, automatic light-sensing green energysaving protection for long-term use of the LCD screen.

   (4) lt has the function of black level extension and self-adaptation, which can enhance the depth of field of the image.

   (5) The outdoor protessional hich-brghtness LCD screen is adopted, the ideo image is brighter and the three-dimensional effect is

stronger

   (6) 16.7M colors, the picture is more natural, and the delicate picture is truly free of tailing.

   (7) Over-life, 7*24 hours of uninterrupted work, up to 50,000 hours.

3. Electrical:

  (1) Electrical protection: leakage, overload, overvoltage protection, lightning protection device, over-temperature protection, etc.

  (2) Audio: Dual-channel, stereo surround power amplifier system with an output power of 8 ohms and 10W.

  (3) The working environment temperature design standard is +50°~-20°.

  (4) Adopt the principle of modular design, sustainable and maintainable design.

  (5) Automatic photosensitive adjustment: The screen backiht adopts automatic ambient ioht sensing, real-time adiustment of the screen brightness canmeet the ciear image display under strong direct sun int environment, so that the screen is not dazz in at nicht eneroy

savna and envronmentaprotection.

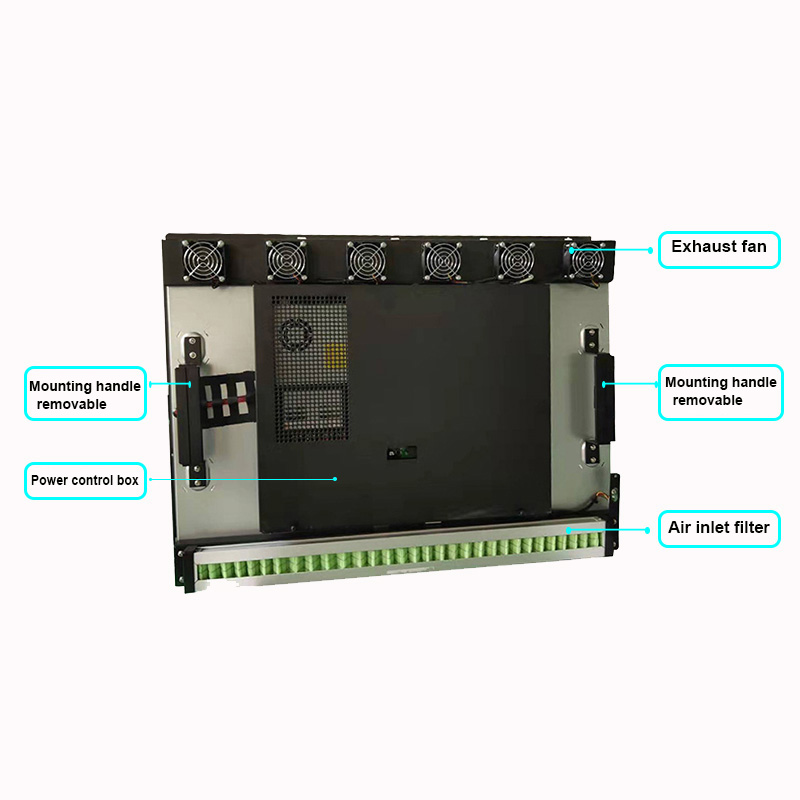

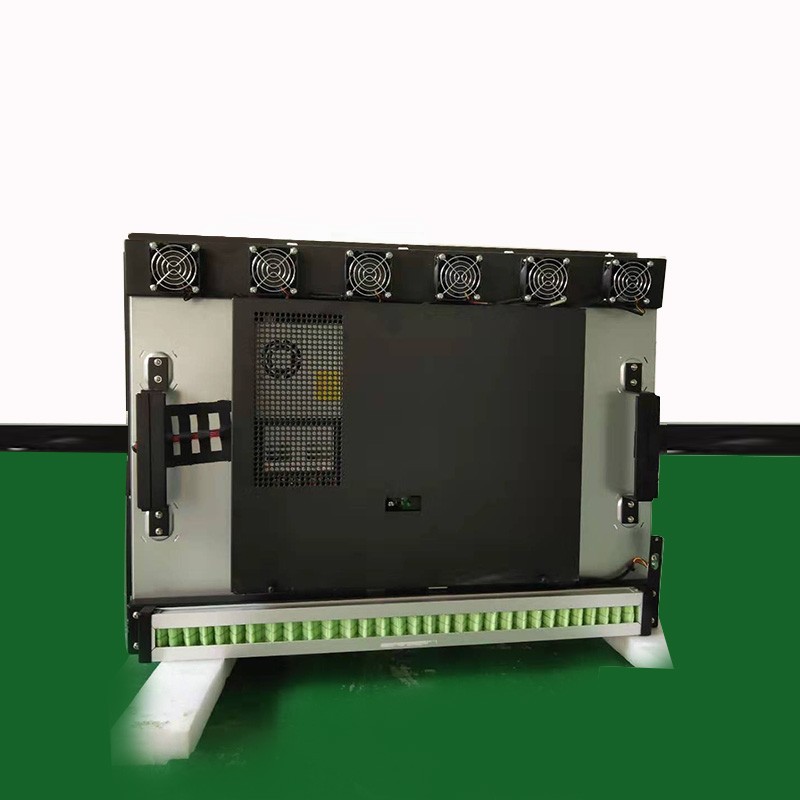

4.Heat dissipation:

(1) Adopt integrated intelligent direct ventilation and heat dissipation system, professional and special air duct heat dissipation desiqn.

(2) The interal air and extemal air of the whole machine are circulated and exchanged. After the exteral air enters the dust-proof net and

is filtered, it isdivided into two sub-circulations in front of the screen and behind the screen to ensure that the intemal temperature is 8-10 dearees hiaher than theexternal temperature.

(3) Self-developed fan speed control board, which can automatically adiust the fan speed according to the internal temperature of the

machine

(4) Equipped with high-temperature automatic power-of protection function. When the internal temperature of the machine is

abnormally high andexceeds the norma working ranae the contro sstem wil perfom powe-of orotecton for the main components surh as the dinlav sreen and at thesame time, the fan continues to run at full speed to dissipate heat, fully protecting the display screen and main components parts.
