Thermal Scanner Face Recognition Temperature Measure System

Feature

1. Hisilicon 3516CV500 series high-performance CPU and SONY HD IMX327/2MP image sensor
2. High precision infrared temperature collector, non - contact automatic temperature detection, accurate and efficient
3. Temperature measurement range:30-45（℃）,Precision can reach ± 0.3℃

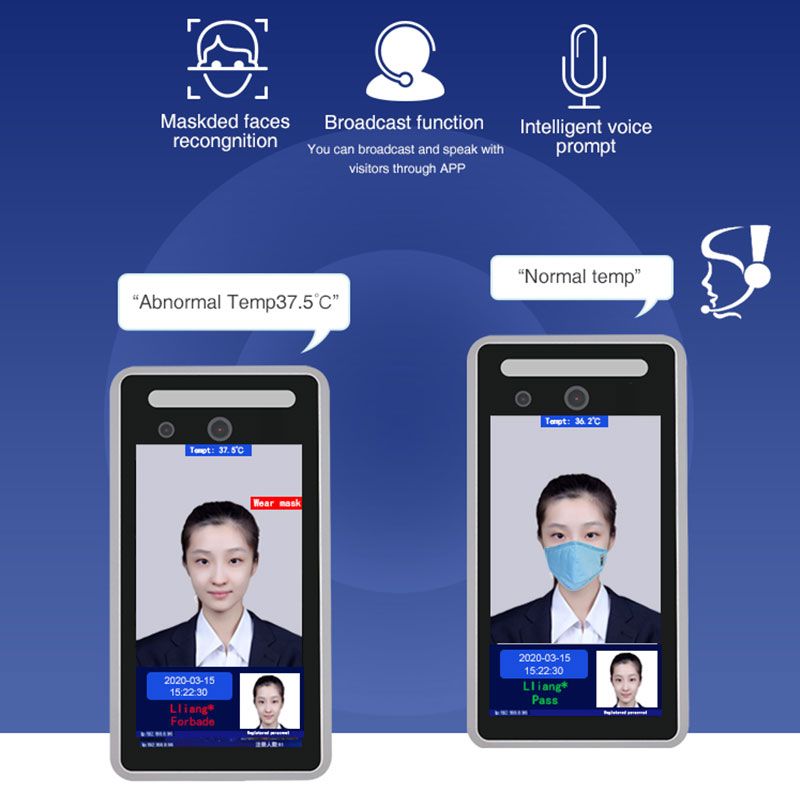

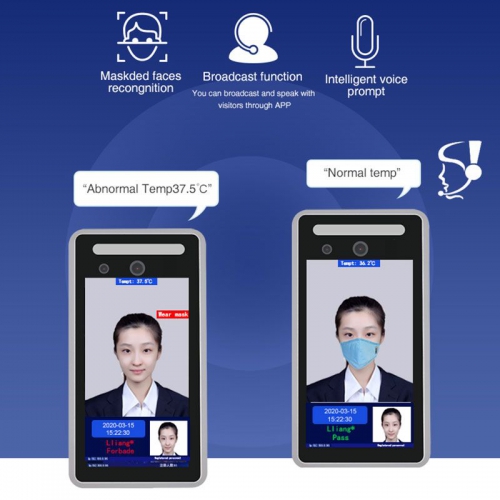

4. Real-time output of authentication results and voice broadcast to give tips
5. Automatic identification of people not wearing masks and real-time warning
6. Automatically register, record information, avoid manual operation, improve efficiency and reduce missing information
7. Monocular liveness detection, face recognition distance of 0.3-1 meters, photos, video false-proof8. Unique face recognition algorithm to accurately recognize faces, face recognition time is less than 500 ms,10000 faces compared database.

Specification
StorageRAM: 2Gb,  Flash:8G ,  TF card 128G
Display7inch LCD
Thermal imaging parameterssensorThermal image infrared temperature sensor
Detection Range30 ~ 45 ℃,
Detection Accuracy± 0.3 ℃
Detection Distance0.5m~1m
Visible Light ParametersImage SensorSony COMS 1 / 2.8 IMX327
LensFocal length 1.8mm, angle of view: 118 °
Minimum illumination[email protected] color mode
Dynamic Range≥120dB
Signal to noise ratio≥46dB（AGC OFF）
Exposure modeProgram mode (shutter interval can be customized), shutter mode (1/5-1 / 20,000s), support slow shutter
White balanceAutomatic, indoor, outdoor, sodium lamp mode, manual
Digital noise reductionSupport DNR, 3DNR
Day and night modeFixed color
Image and CompressionVideo compressionH.265 Main Profile / H.264 High profile / M-JPEG
Maximum resolution[email protected]
ResolutionMain stream1920x1080、1280x960、1280x720、720x576
Secondary stream640x480、352x288、320x240、176x144
MJPEG1920x1080、1280x720、Close
Output code rateFixed bit stream (CBR) or variable bit rate (VBR), the bit stream can be set range: 32Kbps ~ 10Mbps
Audio compressionG711, PCM
Character overlaySupport channel name, date and time superposition, the superposition position can be adjusted;
AI AlgorithmNumber of face librariesMaximum 10,000 sheets
Recognition speed≤300ms
BiopsySupport
Mask detectionSupport
Abnormal body temperature alarmSupport (voice broadcast)
Hardware InterfacePower interfaceDC12V
Network Interface1 channel 10 / 100BaseT Ethernet RJ45 interface
Wiegand Interface1 Wiegand interface output
Switch Interface1 relay output
MICBuilt-in
Audio portBuilt-in 2 audio output
USB Interface
General SpecificationsOperating temperature5°C ~50°C
Working humidity0%-90% RH (No condensation)
Power consumption5W
Size--

Processor	Hi 3516CV500	Panel size	7"
Detection Accuracy	0.3°C	Storage	8G
Detection Distance	30cm-100cm	Camera	SONY IMX327
Detection Range	35℃~41℃	IP Grade	IP65

Storage	RAM: 2Gb, Flash:8G , TF card 128G
Display	7inch LCD
Thermal imaging parameters	sensor	Thermal image infrared temperature sensor
	Detection Range	30 ~ 45 ℃,
	Detection Accuracy	± 0.3 ℃
	Detection Distance	0.5m~1m
Visible Light Parameters	Image Sensor	Sony COMS 1 / 2.8 IMX327
	Lens	Focal length 1.8mm, angle of view: 118 °
	Minimum illumination	[email protected] color mode
	Dynamic Range	≥120dB
	Signal to noise ratio	≥46dB（AGC OFF）
	Exposure mode	Program mode (shutter interval can be customized), shutter mode (1/5-1 / 20,000s), support slow shutter
	White balance	Automatic, indoor, outdoor, sodium lamp mode, manual
	Digital noise reduction	Support DNR, 3DNR
	Day and night mode	Fixed color
Image and Compression	Video compression	H.265 Main Profile / H.264 High profile / M-JPEG
	Maximum resolution	[email protected]
	Resolution	Main stream	1920x1080、1280x960、1280x720、720x576
		Secondary stream	640x480、352x288、320x240、176x144
		MJPEG	1920x1080、1280x720、Close
	Output code rate	Fixed bit stream (CBR) or variable bit rate (VBR), the bit stream can be set range: 32Kbps ~ 10Mbps
	Audio compression	G711, PCM
	Character overlay	Support channel name, date and time superposition, the superposition position can be adjusted;
AI Algorithm	Number of face libraries	Maximum 10,000 sheets
	Recognition speed	≤300ms
	Biopsy	Support
	Mask detection	Support
	Abnormal body temperature alarm	Support (voice broadcast)
Hardware Interface	Power interface	DC12V
	Network Interface	1 channel 10 / 100BaseT Ethernet RJ45 interface
	Wiegand Interface	1 Wiegand interface output
	Switch Interface	1 relay output
	MIC	Built-in
	Audio port	Built-in 2 audio output
	USB Interface
General Specifications	Operating temperature	5°C ~50°C
	Working humidity	0%-90% RH (No condensation)
	Power consumption	5W
	Size	--
