Features:
Intel 7th Gen Core i5/i7-HQ CPU Optional
2x DDR4 SODIMM, up to 32GB memory
Support Dual PCI, Dual PCIE x4 or PCIE x4 + PCI
6 RS-232 serial ports (2 of them support RS485/RS442)
4 Intel i210/i211 Gigabit LAN, support POE
One-key restore, watchdog, diskless boot
DC 9-36V wide voltage, Fanless
Specification:
| Model: SM11-4 | |
| PC | |
| CPU | Intel 7th Gen Core i5/i7-HQ CPU Optional |
| Memory | 2x DDR4 SODIMM, up to 32GB memory |
| Storage | 1x MSATA 1x M.2 NVME 2280 1x HDD/SSD |

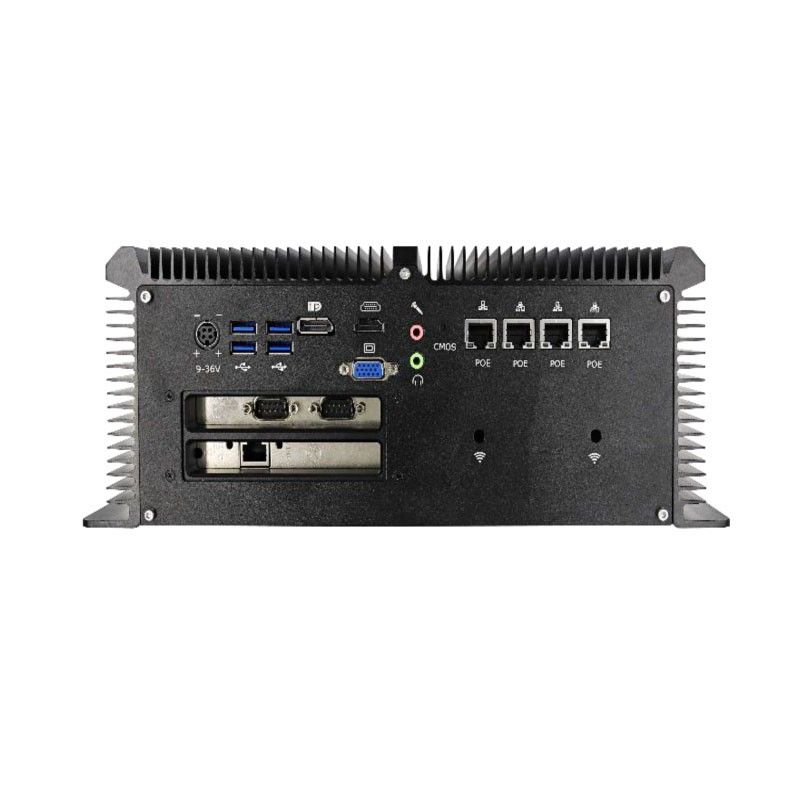

| Display | 1x HDMI, 1x VGA, 1x DP |
| Network | 4 x GbE RJ45 Intel i211/i210 Support POE, support 802.3AF (2x13W), 802.3AT (2x30W), 802.3BT (4x30W) |

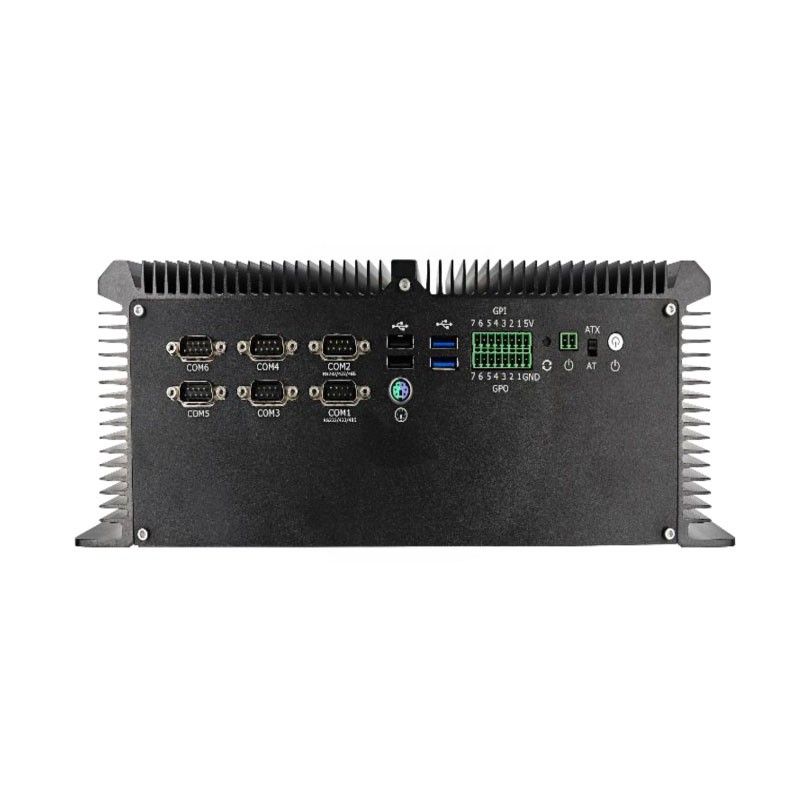

| I/O | 6x USB3.0, 2x USB2.0, 6x DB9 COM (2 of them support RS485/RS422), 1x HDMI, 1x VGA, 1x DP, 1x PS2 (keyboard and mouse combo), 14x GPIO (7 inputs, 7 outputs), 1x Power Button, 1 x Reset Button, 1 x Clear CMOS Button, 1x 4pin Phoenix, support 9-36V power input, 1x Headphone Jack, 1x Microphone, 1x ATX/AT, 2x Antenna Ports for WIFI/3G/4G |
| Expansion Slot | 1x Mini-PCIe Half card/Full card (with SIM card holder), support 3G/4G module WIFI Bluetooth 4 x PCI，1 x PCIEx8，2 x PCIEx4 |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Windows® 7/8/10, WES 7/10, LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤20W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, Storage: -30 to 80°C, surface air flow |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details | |
| Net weight | 4.6 kg |
| Gross weight | 6 kg |

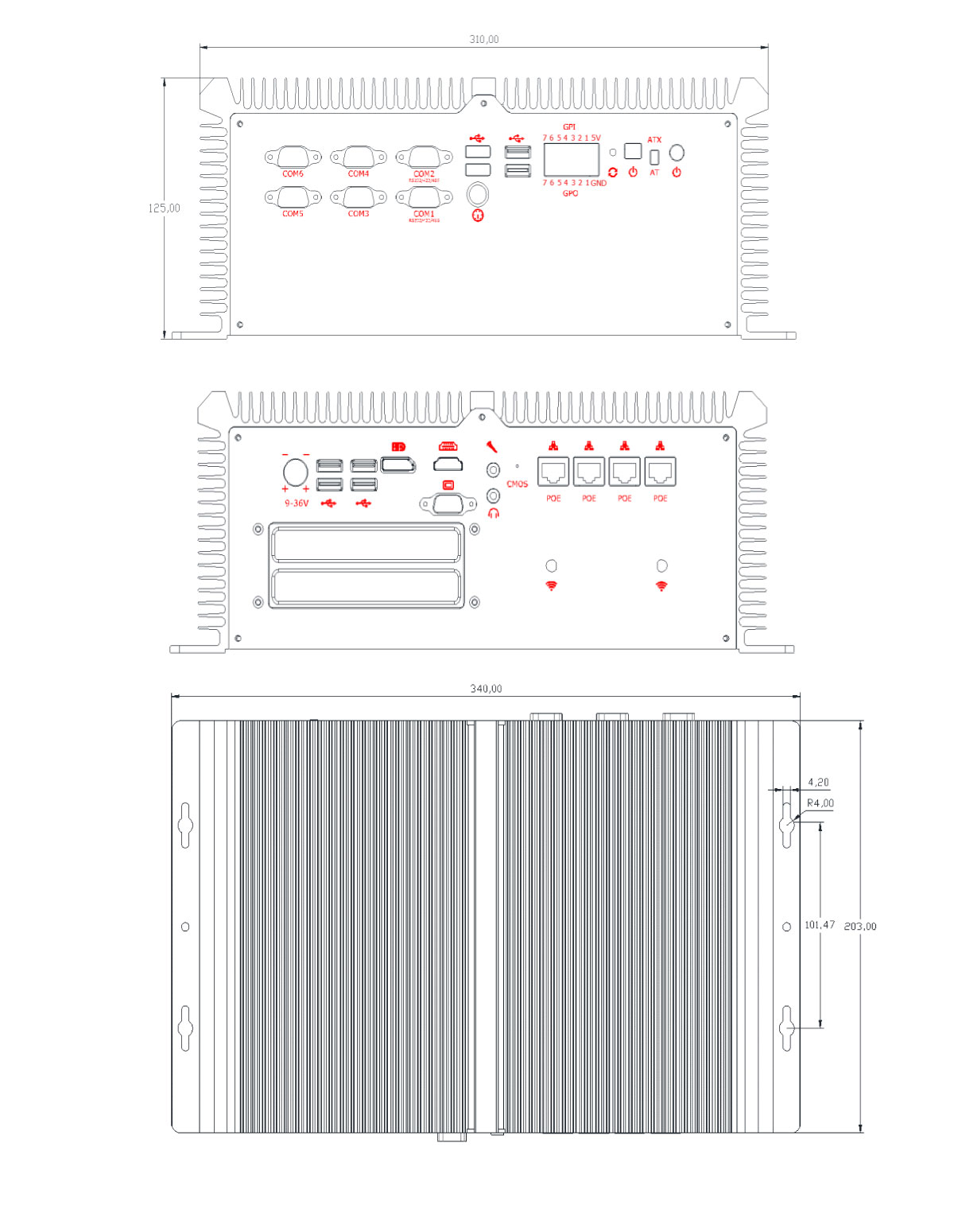

| Product Dimension | 310 x 203 x 125 mm |
| Packing size | 40*30*17cm |
| Accessories | Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws |
| Other | |
| Mounting (options) | Embedded mount |
| Wall mounting | |
| Warranty | 2 years warranty |
